overview

The 6 / 4D - G series sand pump adopts a single pump shell structure with cassette connection. It is a single-stage single-suction cantilever centrifugal pump with light weight, good cavitation performance, strong abrasion resistance, wide over-flow passage, and installation. Convenient and other advantages, it can continuously transport large particles of strong abrasive mud, suitable for dredger dredging, sand picking and River Dreding.

The 6 / 4D - G sand pump over-current parts are cast by anti-abrasion high-chromium wear-resistant alloy. In the over-current parts, the impeller, the front guard plate and the rear guard plate are all made of strong anti-wear alloy cast iron with a hardness of not less than 58HRC. It is characterized by high efficiency, energy saving, wear resistance and reliable operation. It is suitable for conveying strong abrasive mortar, mortar, slag, etc. containing solid particles. The mixed solid-liquid concentration can reach 60%, which is an ideal sand pumping and sand feeding equipment.

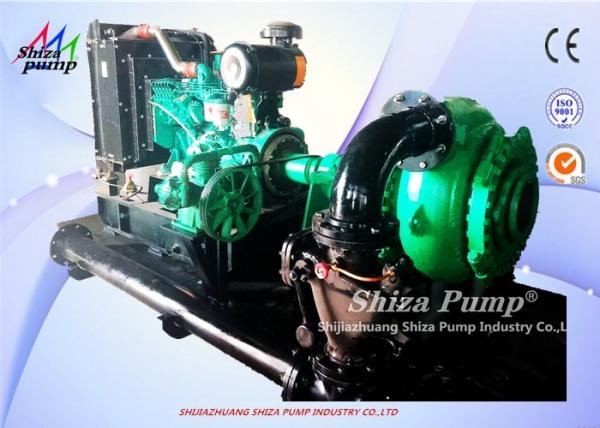

The 6/4D-G gravel pump described in the picture is matched with a diesel motor. This combination is ideal for use on board. It is very efficient to dig sand or dredge.

Type meaning

6 / 4D - G(H)

6----------------pump inlet size (inch )

4----------------pump outlet size (inch)

G----------------G gravel pump

H----------------High head gravel pump

Performance table:

Construction Drawing

Selection ＆ Performance Chart

Main features

All our Gravel Pumps be designed and manufactured by International Standard, ensuring our pump has longer service life, higher performance, ease of operation and maintenance.

(1). compact structure

(2). convenient operation

(3). stable operation

(4). easy maintenance

(5). high efficiency

(6). long service life

(7). delivery big size particle

(8). keep delivering extremely corrosive liquid or slurries for long time

(9).super big capacity delivery

Our service

1. Offer gravel and sand pump solution design as working condition,

2. Installation & ajustment in working condition,

3. Accept OEM

4. Select pump & related equipement,

5. Sample available.

Motor driven gravel pump

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
