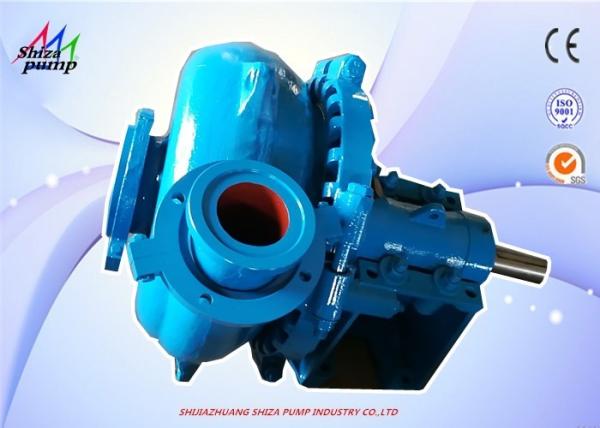

    4 - 6D - G Continuously Transporting High Wear Resistant Gravel Pumps

    Ask Lasest Price
    Brand Name : SHI ZA
    Model Number : G
    Certification : ISO CE
    Price : Based On Quantity
    • Product Details
    • Company Profile

    4 - 6D - G Continuously Transporting High Wear Resistant Gravel Pumps

    4 - 6D - G Continuously Transporting High Wear Resistant Gravel Pumps


    Product Features:

    This series of gravel pumps can be used for dredging, river dredging, mining and metal smelting and other particle transportation, not easy to wear, using a variety of speeds and variants, resulting in long service life, high operating efficiency, can meet a variety of poor transport condition.

    The reason why the gravel pump can continuously transport liquid is mainly the centrifugal force generated by the high-speed rotating sand pump impeller. When the liquid is thrown around the impeller, the kinetic energy increases, and the sand pump casing is flowed at a high speed. After deceleration, From the discharge port of the sand pump to the discharge pipe.


    Type Notation:

    4 / 6G - G

    4----------------pump inlet size (inch )

    6----------------pump outlet size (inch)

    G----------------G gravel pump

    G----------------Pump Model


    Product Advantages:

    1)Convenient Operation

    2)High Efficiency

    3)Long Service Life

    4)Delivery Big Size Particle

    5)Stable Operation


    Performance Chart:


    Pump ModelAllowableClear Water Performance
    Max. PowerCapacity QHeadSpeedMax.Eff.Impeller. Dia. (mm)
    (kw)m3/hH (m)n(r/min)(%)
    6/4D-G6036-2505-52600-140058378
    8/6E-G120126-5766-45800-140060378
    10/8S-G560216-9368-52500-100065533
    10/8F-G260216-9368-52500-100065533
    10/8S-GH560180-144024-80500-95072711
    12/10F-G260360-144010-60400-85065667
    12/10G-G600360-144010-60400-85065667
    12/10G-GH600288-280816-80350-70073950
    14/12G-G600576-30248-70300-70068864
    16/14G-G600720-360018-44300-500701016
    16/14TU-G1200324-360026-70300-500721270
    18/16G-G600720-432012-48250-500721067
    18/16TU-G1200720-432012-48250-500721067

    G/GH Selection&Performance Chart

    G/GH Outline Drawing
