High Speed Drainage Vertical Sewage Pump With Unique Double Suction Impellers

Application and Features

Type SP / SP(R) pumps are vertical,centrifugal slurry pumps which are submerged in sump to work.They are designed for delivering abrasive,large partical and high density slurries.These pumps do not need any shaft seal and sealing water.They can also be operated normally for insufficient suction duties.

Wet parts of type SP pumps are made of abrasion-resistant metal.

All parts of type SP(R) pump immersed in liquid are lined with rubber.They are suited to transport the slurry which contains non-edge and abrasive particle.

The type with "L" is series of sump pump with extended shaft,which is suited for the working condition of deeper level.The guide bearing construction is added to the pump on the basis of the standard pump,so the pump is with both more steady operation and wider application range,but flushing water should be attached to the guide bearing.

Introduction

Series SP sump slurry pumps are vertical, centrifugal slurry pumps submerged in water to work. They are designed for delivering abrasive, large particle and high-density slurries. These pumps needn’t shaft sealing or sealing water. They also can be operated normally for insufficient suction duties. As an experienced pump manufacturer in China, Our company provides all kinds of pumps for sale.

The type with "L” is a sump slurry pump of extension shaft series, which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump. So the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.

SP / SPR Series Sump Pump Performance Chart

​Type Notation

eg:150SV-SP(R)
150---Outlet diameter (mmQ
SV---Support type
SP---Slurry pump submerged in sump
R---Rubber liner

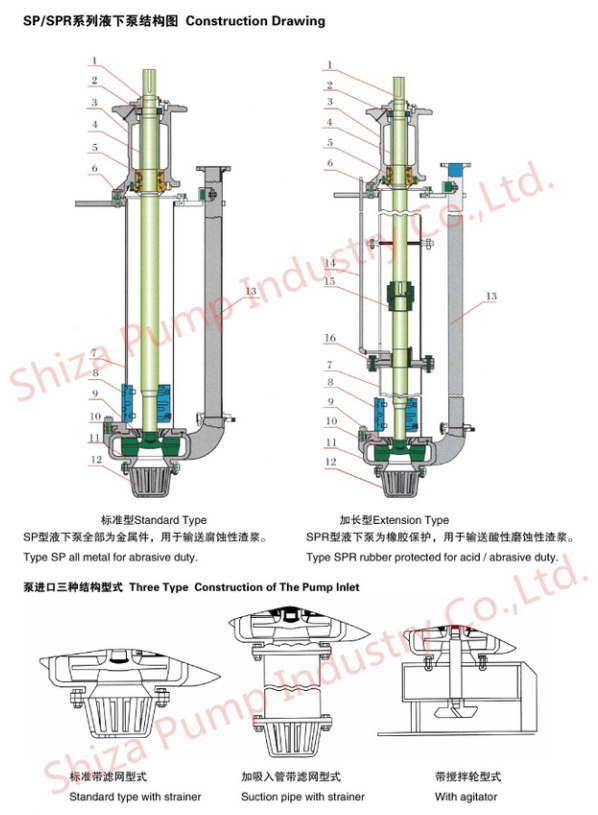

SP / SPR Series Sump Pump Construction Drawing

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
