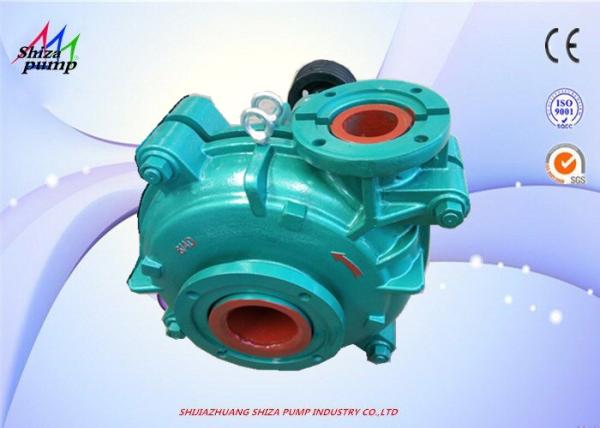

Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet

Shijiazhuang Shiza Pump Industry Co.,Ltd.
Contact Now
    Buy cheap Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet from wholesalers

    Buy cheap Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet from wholesalers
    • Buy cheap Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet from wholesalers

    Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 6 / 4D-
    Certification : ISO
    Price : based on quantity
    Supply Ability : 200sets monthly
    Delivery Time : 15days
    MOQ : 1 set
    • Product Details
    • Company Profile

    Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet

    Metal Liner Gold Dredge Cantilever Centrifugal Pump 6 / 4D- With 4 Inch Outlet

    Type meaning for 6/4D- model metal liner pump


    Type meaning
    6/4D-
    6Pump inlet size
    4Pump outlet size
    EBracket type

    slurry pump
    RR-Rubber liner pump

    Performance table


    MODELALLOWABLE MATING
    MAX.POWER
    (KW)
    MATERIALCLEAN WATER PERFORANCEIMPELLER
    LINERIMPELLERQ CapacityH HeadSpeedMax. Eff.NPSHVANES NO.IMPELLER DIA
    m3/hL/s(m)n(r/min)(%)(m)(mm)
    1.5/B-15MM12.6-28.83.5-86-681200-3800402--45152
    RURU10.8-25.23--77-521400-3400303
    1/1.5B-15MM16.2-34.24.5-9.525-921400-2200202-5.55330
    2/1.5B-15MM32.4-729--206-581200-3200453.5-85184
    RURU25.2-547--155.5--411000-2600502.5-55178
    3/2C-30MM39.6-86.411--2412-641300-2700554--65214
    RURU36-75.610--2113-461300-2300602--45213
    3/2D-HH60MM68.4-136.819-3825-87850-1400473-7.55457
    4/3C-30MM86.4-19824-559-521000-2200714--65245
    RURU79.2-18022-505-34.5800-1800593--5
    4/3E-HH120MM126-25235-7012-97600-1400502--55508
    6/D-60MM162-36040-10012-56800-1550655--85365
    RURU144-32440-9012-45800-1350653--55365
    6/4S-HH560MM324-72090-20030-118600-1000643-85711
    6S-HH560MM468-1008130-28020-94500-1000654-125711
    8/6E-300MM360-828100-23010-61500-1140722-95510
    RURU324-72090-2007-49400-1000655-105510
    10/8E-M120MM666-1440185-40014-60600-1100734-105549
    10/8ST-560MM612-1368170-38011-61400-850714-105686
    RURU540-1118150-33012-50400-750754-12
    12/10ST-560MM936-1980260-5507-68300-8008265762
    RURU720-1620200-4507-45300-650802.5-7.5
    14/12ST-560MM1260-2772350-77013-63300-600773-85965
    RURU1152-2520320-70013-44300-500793-10
    16/14TU-1200MM1368-3060380-85011-63250-550794-1051067
    20/18TU-1200MM2520-5400700-150013-57200-400855-1051370

    Slurry pump knowdge


    The centrifugal pump will be gradually worn and corroded by the sediment, the water flow, and the corrosion of the medium. The surface of the leaves often forms grooves or strips, or is damaged by cavitation, and the leaves appear honeycomb-like holes or even perforations. If the blade is cast with stomata, sandholes, or slag, the surface after operation is prone to stomata and even cracks.


    There are many methods for repairing the impeller of the water pump. There are many methods for repairing the impeller's cavitation, such as using ARC polymer composite materials, powder spraying(welding), epoxy resin coating, rubber and nylon composite material repair, etc.. Stainless steel inlaying, surfacing and so on. The epoxy resin polymer coating has the advantages of simple, low price and good effect.


    Shaft Seal Module Design
