High Pressure Abrasive Heavy Duty Sludge Pump For Coaling
Horizontal 6 / 4E -
Product overview for 6/4E- slurry pump
1. Type (R),HH ,M(R) pumps are cantilevered ,horizontal
,centrifugal slurry pumps.They are designed
for handling abrasive or corrosive slurry in metallurgical
,mining,coal ,power,building
Material and other industrial departments etc.
2. (R),HH are also called heavy duty slurry pumps,are used to
transport the strong abrasive high
density or low density high head slurry.Under the allowable
pressure.the pumps of this type also can be
installed in multistage series .HH type pump is mainly used for
transport low density high head or high
density low abrasive high head slurry.
3. M(R) is a kind of middle slurry pump,used to transport the fine
particle size and middle density slurry .
The liner and impeller of model can be changeable and material can
be either anti-abrasive metal or rubber .But material of liner and
impeller of HH model only can be metal version.Rubber material wet
parts are mainly used for transport the slurry which contains fine
,non-sharp particle size.
The shaft seals for type (R),M(R) and HH pumps can be adoptable of
gland seal ,expeller seal and
mechanical seal .
The discharge can be positioned at the intervals of 45 degrees by
any eight directions
to suite installations and applications.
Type meaning of 6/4E- slurry pump
| Type meaning for mineral centrifugal slurry pump |
| 6/4E- |
| 6 | Pump inlet size (inch) |
| 4 | Pump outlet size (inch) |
| E | Bracket type |
| slurry pump |
| R | R-Rubber liner pump |
Specification
| Model | 6/4E- |
| Allowable Max.Power | 120kw |
| Capacity | 162-360m³/h |
| Head | 12-56m |
| Speed | 800-1550r/min |
| Max.Eff. | 65% |
| NPSH | 5-8m |
| Impeller Dia. | 365mm |

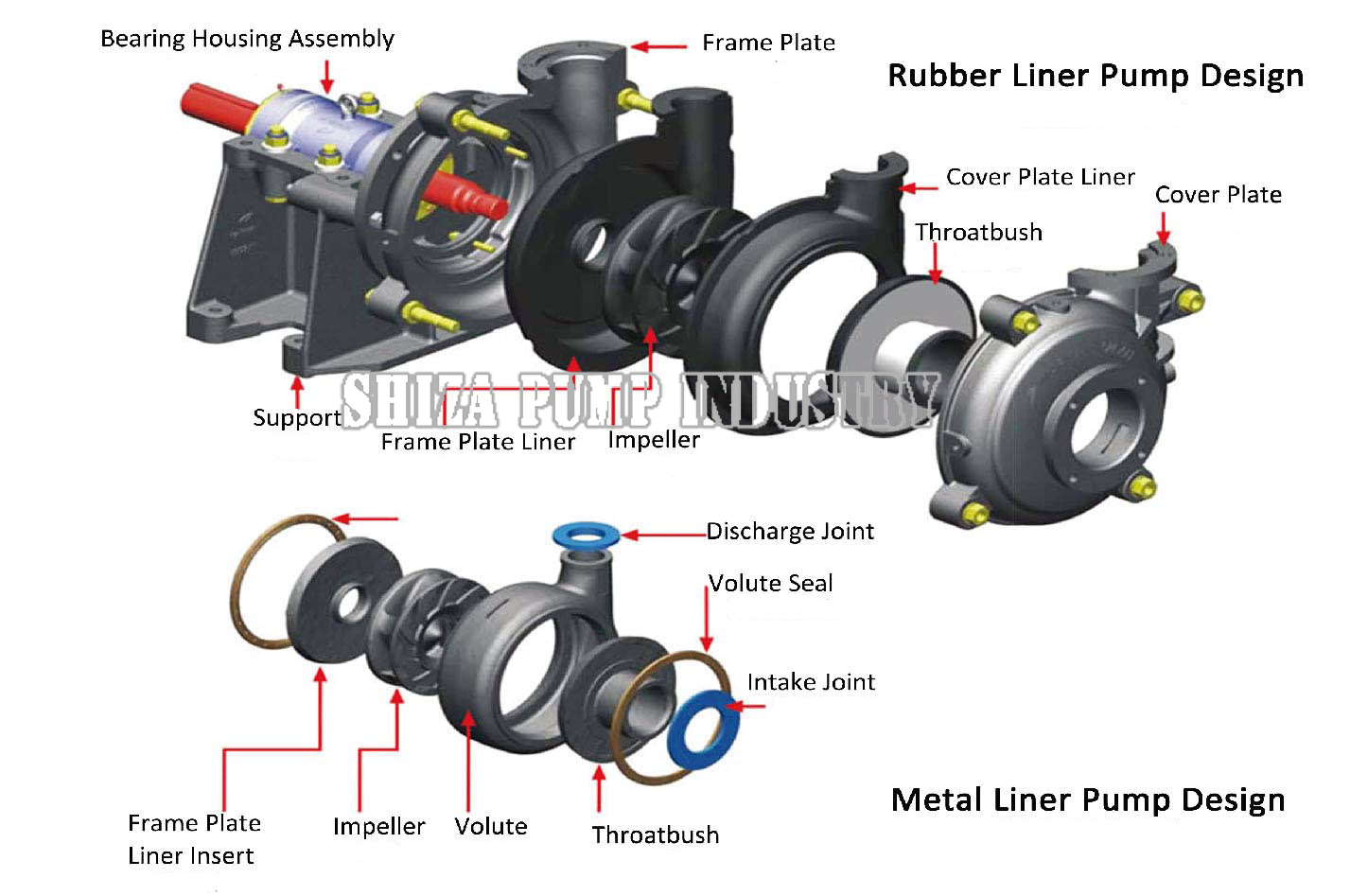

Structure of slurry pump
