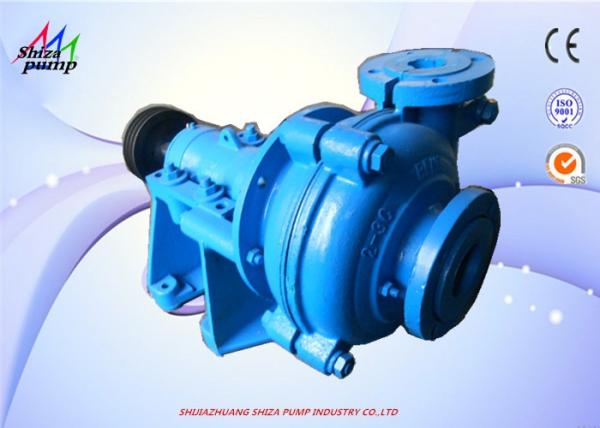

2 / 3C- Heavy Centrifugal Slurry Pump For The Coal Industry

Product introduction

2 / 3C- Heavy Centrifugal Slurry Pump Is currently the mineral processing, coal preparation plant one of the indispensable equipment in each technological process,In the coal washing industry, due to the different working conditions, large coal, coal gangue is easy to jam to the design of the slurry pump is very demanding,Such as Huaibei mining bureau subordinate a certain coal washery 05 using specially designed, replace the original slurry pump imported from Australia, now operating normally, transporting large coal, coal gangue without clogging.

Model meaning

4 / 3 C - (R)

4------------Suction diameter(Inch)

3------------Discharge diameter(Inch)

C-----------Support type

-------- Pump Model

R-----------Natural Rubber

Specifications

Centrifugal slurry pump working principle:

1. Before the pump works, the staff must first inject the liquid used for conveying into the pipeline and the pump casing, and fill the two;

2. When the slurry pump is started, the liquid in the impeller will be rotated by the blades of the impeller;

3. Under the action of centrifugal force, the liquid rotates forward and then flows out of the impeller;

4. During the process of flowing the liquid from the impeller inlet to the impeller outlet, the velocity energy and the pressure energy are increased due to the energy conversion, and the liquid flowing out from the impeller is discharged through the pump casing flow passage and then discharged from the discharge pipe;

5. At this time, the impeller inlet is formed by the discharge of water, and the liquid in the suction surface is pressed into the water inlet of the impeller under the action of atmospheric pressure;

6. The rotating impeller continuously draws in and drains water to form a continuous stream of water.

Typical Applications:

Ash Handling

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Construction Design

Shaft Seal Module Design

Performance table

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
