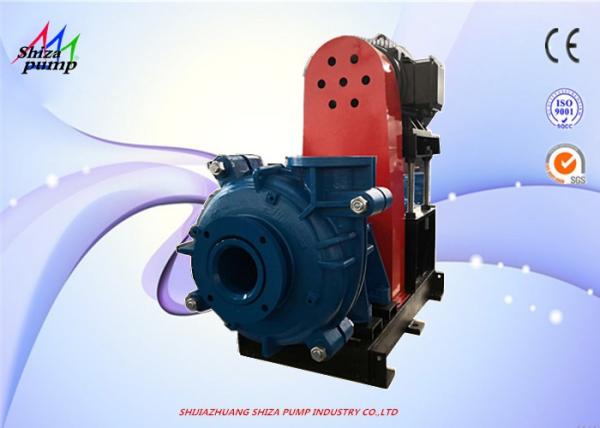

6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump

Shijiazhuang Shiza Pump Industry Co.,Ltd.
Contact Now
    Buy cheap 6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump from wholesalers

    Buy cheap 6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump from wholesalers
    • Buy cheap 6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump from wholesalers

    6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 6 / 4 D -
    Certification : ISO
    Price : based on quantity
    Supply Ability : 200sets monthly
    Delivery Time : 15days
    • Product Details
    • Company Profile

    6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump

    6 / 4 D - Hard Metal High Chrome Alloy Centrifugal Slurry Pump

    Product overview


    The slurry pump is a single-stage single-suction, cantilever, horizontal centrifugal slurry pump. This type of pump has a thick bearing and is equipped with a heavy-duty bracket, so it is suitable for conveying strong abrasion, high concentration slurry or low concentration high lift slurry. It can be used in multiple stages in series within the maximum allowable operating pressure range of the pump. The pump can also be used to transport a corrosive slurry.


    The slurry pump has a replaceable wear-resistant metal lining or rubber lining. The impeller is made of wear-resistant metal or rubber. The shaft seal can be a packing seal or a centrifugal seal. The pump's discharge port can be installed at a different angle from 45°C and rotated at eight different angles.


    Type meaning


    Type meaning for mineral centrifugal slurry pump
    6 / 4 D -
    6Pump inlet size (inch )
    4Pump outlet size (inch)
    DBracket type
    slurry pump
    RR-Rubber liner pump

    Specification


    Pump Model6 / 4 D -
    Allowable Max.Power60 kw
    Capacity162 - 360 m³/h
    Head12 - 56 m
    Speed800 - 1550 r/ min
    Max.Eff.65 %
    NPSH5 - 8 m
    Impeller Dia.365 mm

    Performance table of mining centrifugal slurry pump


    MODELALLOWABLE MATING
    MAX.POWER
    (KW)
    MATERIALCLEAN WATER PERFORANCEIMPELLER
    LINERIMPELLERQ CapacityH HeadSpeedMax. Eff.NPSHVANES NO.IMPELLER DIA
    m3/hL/s(m)n(r/min)(%)(m)(mm)
    1.5/B-15MM12.6-28.83.5-86-681200-3800402--45152
    RURU10.8-25.23--77-521400-3400303
    1/1.5B-15MM16.2-34.24.5-9.525-921400-2200202-5.55330
    2/1.5B-15MM32.4-729--206-581200-3200453.5-85184
    RURU25.2-547--155.5--411000-2600502.5-55178
    3/2C-30MM39.6-86.411--2412-641300-2700554--65214
    RURU36-75.610--2113-461300-2300602--45213
    3/2D-HH60MM68.4-136.819-3825-87850-1400473-7.55457
    4/3C-30MM86.4-19824-559-521000-2200714--65245
    RURU79.2-18022-505-34.5800-1800593--5
    4/3E-HH120MM126-25235-7012-97600-1400502--55508
    6/D-60MM162-36040-10012-56800-1550655--85365
    RURU144-32440-9012-45800-1350653--55365
    6/4S-HH560MM324-72090-20030-118600-1000643-85711
    6S-HH560MM468-1008130-28020-94500-1000654-125711
    8/6E-300MM360-828100-23010-61500-1140722-95510
    RURU324-72090-2007-49400-1000655-105510
    10/8E-M120MM666-1440185-40014-60600-1100734-105549
    10/8ST-560MM612-1368170-38011-61400-850714-105686
    RURU540-1118150-33012-50400-750754-12
    12/10ST-560MM936-1980260-5507-68300-8008265762
    RURU720-1620200-4507-45300-650802.5-7.5
    14/12ST-560MM1260-2772350-77013-63300-600773-85965
    RURU1152-2520320-70013-44300-500793-10
    16/14TU-1200MM1368-3060380-85011-63250-550794-1051067
    20/18TU-1200MM2520-5400700-150013-57200-400855-1051370

    Construction
