    8 / 6 E - Slurry Pump , High Head High Chromium Alloy Centrifugal Slurry Pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 8/6 E-
    Certification : ISO
    Price : based on quantity
    Supply Ability : 200sets monthly
    Delivery Time : 15days
    • Product Details
    • Company Profile

    8 / 6 E - Slurry Pump , High Head High Chromium Alloy Centrifugal Slurry Pump

    8 / 6 E - High Head High Chromium Alloy Centrifugal Slurry Pumps

    Product overview


    This series of slurry pumps are cantilever centrifugal slurry pumps, which are suitable for conveying abrasive or corrosive slurry. They are widely used in metallurgical, mining, petroleum, chemical, coal, power, transportation, River dredging, building materials and municipal engineering departments.


    series slurry pump can also be called heavy slurry pump. Because the pump has thick bearing parts and heavy brackets, it is suitable for conveying strong abrasion, high concentration slurry or low concentration and high lift slurry. It can be used in series at the maximum allowable working pressure range of the pump.


    This series of pumps are horizontal, vertical open, double pump shell structure. The pump body and pump cover have replaceable metal lining or rubber lining. The lining can be used until worn out. It does not need to be replaced, prolongs the maintenance cycle and reduces the operation cost.


    Type meaning


    Type meaning for mineral centrifugal slurry pump
    8/6 E-
    8Pump inlet size
    6Pump outlet size
    EBracket type
    slurry pump
    RR-Rubber liner pump

    Specification


    Pump Model8 / 6 E -
    Allowable Max.Power120 kw
    Capacity360 - 828 m³/h
    Head10 - 61 m
    Speed500 - 1140 r/min
    Max.Eff.72 %
    NPSH2 - 9 m
    Impeller Dia.510 m

    Structure of slurry pump

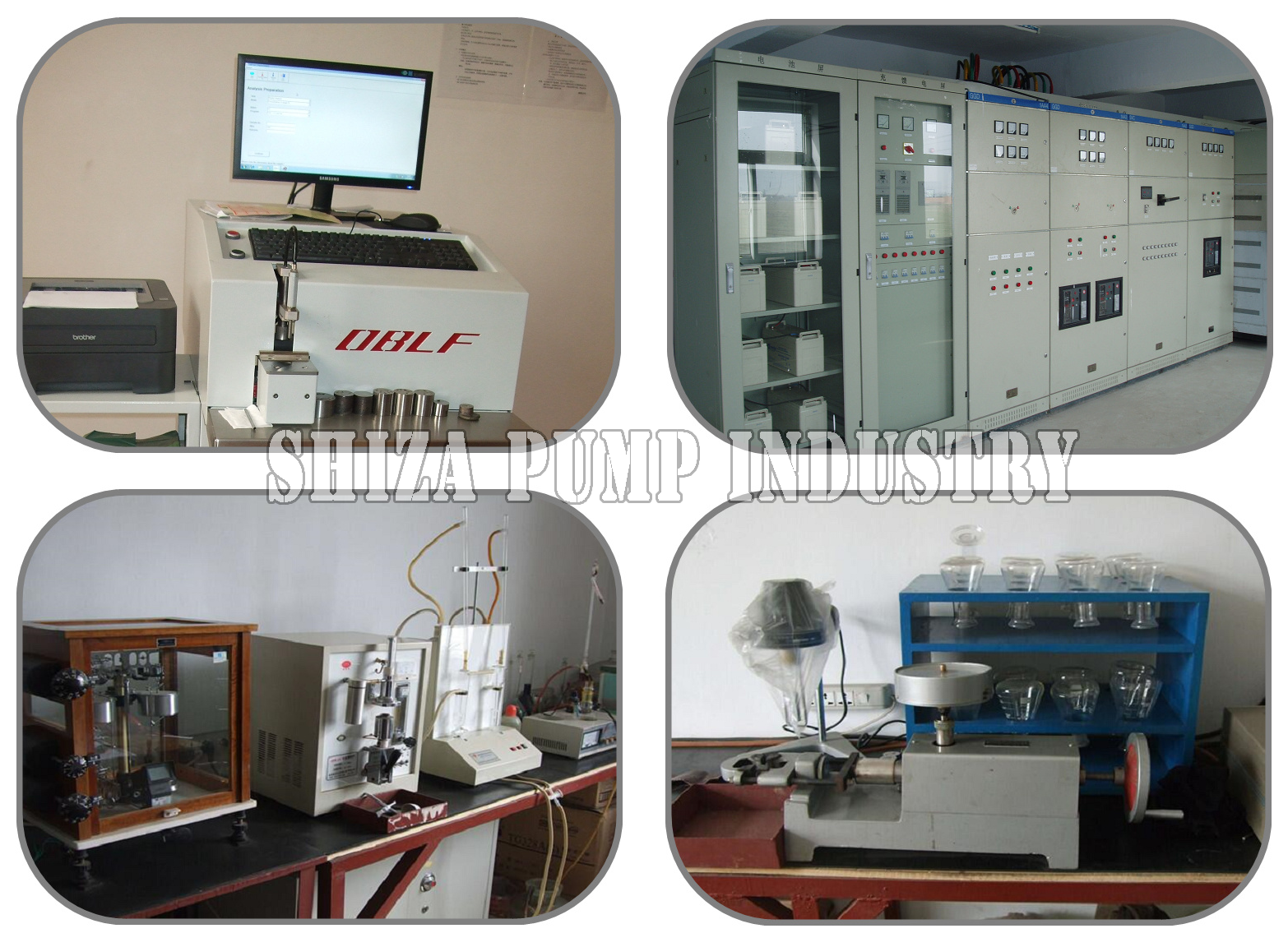

    Quality control for mining centrifugal slurry pump



    Working operation
