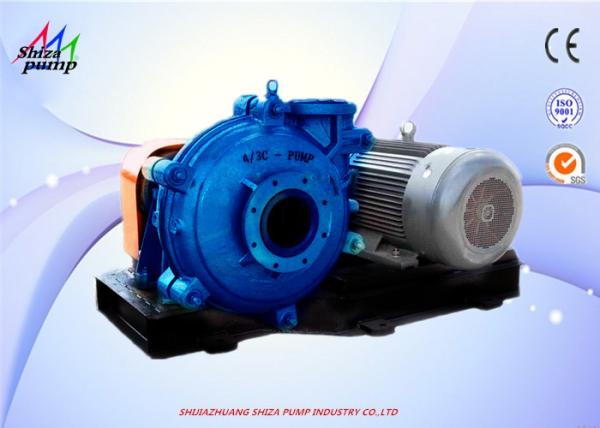

    Wear / Corrosion Resistant horizontal centrifugal slurry pump , industrial sludge pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 4 / 3 C -
    Certification : ISO/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 300 Sets per Month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    Wear / Corrosion Resistant horizontal centrifugal slurry pump , industrial sludge pump

    4 / 3 High Chromium Wear Resistant Corrosion Resistant Centrifugal Slurry Pump


    Main introduction of slurry pump


    4 / 3C- is one of the models of the slurry pump series, where: 4: pump suction port size 3: pump discharge port size C: pump bracket type (C stands for maximum power consumption is 30Kw : represents a type of slurry pump: it is divided from the concentration of the medium, and represents a heavy-duty slurry pump.


    Pump body pump cover and over-current components: This series of pumps is a horizontal, vertical medium-sized, double-pump shell structure slurry pump. The pump body and pump cover are equipped with a replaceable metal lining. The lining is made of high-chromium wear-resistant alloy material. The lining can be used until wear-through, extending the maintenance period and reducing operating costs. The pump outlet direction can be rotated and installed at 8 angles. Bearing assembly: The bearing assembly of the pump adopts a cylindrical structure, which is convenient for adjusting the clearance between the impeller and the front guard plate, and can be completely removed during maintenance. The bearings are greased. Shaft seal (seal): The shaft seal type of the pump has packing seal, impeller seal and mechanical seal. Transmission mode: V-type V-belt drive, flexible coupling drive, gear reducer drive, fluid coupling drive, variable frequency drive, thyristor speed control, etc. Among them, the V-shaped V-belt drive has CL, CV, CR, ZL, ZV, ZR transmission. Overall performance: The pump has a wide performance range, good cavitation performance and high efficiency. Multi-stage series technology can be used to meet long-distance transportation. Overcurrent components are available in a variety of metals and add depth. With a variety of speeds and a variety of variants, the pump operates under optimal industrial and mining conditions. Long service life and high operating efficiency can meet a variety of harsh conveying conditions.


    Model meaning


    4 / 3 C - (R)


    4------------Suction diameter(Inch)


    3------------Discharge diameter(Inch)


    C-----------Support type


    -------- Pump Model


    R-----------Natural Rubber


    Specifications


    Pump Model4 / 3 C -
    Allowable Max.Power30 kw
    Capacity86.4- 198 m³/h
    Head9 - 52 m
    Speed1000 - 2200 r/min
    Meax.Eff.71%
    NPSH4 - 6 m
    Impeller Diameter245 mm

    Typical Applications:


    Ash Handling

    Cyclone Feeds

    Pulp and Paper

    Abrasive Slurries

    Coal Preparation

    Mineral Processing

    Aggregate Processing


    Construction Design



    Shaft Seal Module Design



    Performance table


    MODELALLOWABLE MATINGMATERIALCLEAN WATER PERFORANCEIMPELLER
    MAX.POWERLINERIMPELLERQ CapacityH HeadSpeedMax. Eff.NPSHVANES NO.IMPELLER DIA
    (KW)m3/hL/s(m)n(r/min)(%)(m)(mm)
    1.5/B-15MM12.6-28.83.5-86-681200-3800402--45152
    RURU10.8-25.23--77-521400-3400303
    1/1.5B-15MM16.2-34.24.5-9.525-921400-2200202-5.55330
    2/1.5B-15MM32.4-729--206-581200-3200453.5-85184
    RURU25.2-547--155.5--411000-2600502.5-55178
    3/2C-30MM39.6-86.411--2412-641300-2700554--65214
    RURU36-75.610--2113-461300-2300602--45213
    3/2D-HH60MM68.4-136.819-3825-87850-1400473-7.55457
    4/3C-30MM86.4-19824-559-521000-2200714--65245
    RURU79.2-18022-505-34.5800-1800593--5
    4/3E-HH120MM126-25235-7012-97600-1400502--55508
    6/D-60MM162-36040-10012-56800-1550655--85365
    RURU144-32440-9012-45800-1350653--55365
    6/4S-HH560MM324-72090-20030-118600-1000643--85711
    6S-HH560MM468-1008130-28020-94500-1000654--125711
    8/6E-300MM360-828100-23010-61500-1140722--95510
    RURU324-72090-2007-49400-1000655--105510
    10/8E-M120MM666-1440185-40014-60600-1100734--105549
    10/8ST-560MM612-1368170-38011-61400-850714--105686
    RURU540-1118150-33012-50400-750754--12
    12/10ST-560MM936-1980260-5507-68300-8008265762
    RURU720-1620200-4507-45300-650802.5-7.5
    14/12ST-560MM1260-2772350-77013-63300-600773--085965
    RURU1152-2520320-70013-44300-500793--10
    16/14TU-1200MM1368-3060380-85011-63250-550794--1051067
    20/18TU-1200MM2520-5400700-150013-57200-400855--1051370
