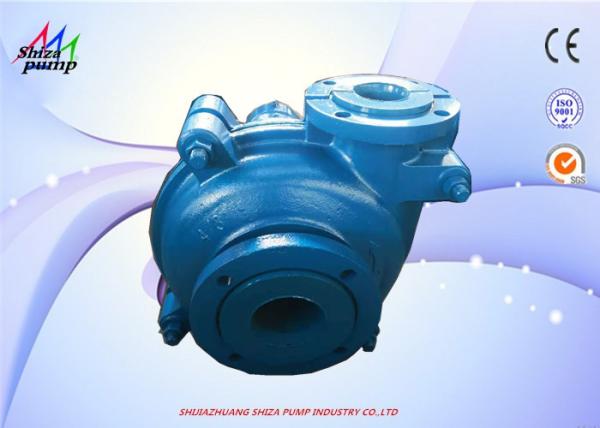

4 / 3 Metal Lined Centrifugal Slurry Pump For Slag Handling,Tailings

Main introduction of slurry pump

Pump body pump cover and over-current components: This series of pumps is a horizontal, vertical medium-sized, double-pump shell structure slurry pump. The pump body and pump cover are equipped with a replaceable metal lining. The lining is made of high-chromium wear-resistant alloy material. The lining can be used until wear-through, extending the maintenance period and reducing operating costs. The pump outlet direction can be rotated and installed at 8 angles.
Bearing assembly: The bearing assembly of the pump adopts a cylindrical structure, which is convenient for adjusting the clearance between the impeller and the front guard plate, and can be completely removed during maintenance. The bearings are greased.
Shaft seal (seal): The shaft seal type of the pump has packing seal, impeller seal and mechanical seal.
Transmission mode: V-type V-belt drive, flexible coupling drive, gear reducer drive, fluid coupling drive, variable frequency drive, thyristor speed control, etc. Among them, the V-shaped V-belt drive has CL, CV, CR, ZL, ZV, ZR transmission.
Overall performance: The pump has a wide performance range, good cavitation performance and high efficiency. Multi-stage series technology can be used to meet long-distance transportation. Overcurrent components are available in a variety of metals and add depth. With a variety of speeds and a variety of variants, the pump operates under optimal industrial and mining conditions. Long service life and high operating efficiency can meet a variety of harsh conveying conditions.

Model meaning

4 / 3 C - (R)

4------------Suction diameter(Inch)

3------------Discharge diameter(Inch)

C-----------Support type

-------- Pump Model

R-----------Natural Rubber

Specifications

Use

In thermal power plants, because a large amount of coal-fired power is used to generate electricity, the slag or ash after coal combustion needs to be removed. The slurry pump is used to remove ash. After the slag is mixed with a certain amount of water, it is pumped through a slurry pump. It is transported to the place where the ash is stacked, so sometimes the slurry pump becomes a ash pump in the power plant.

In the application of the concentrator, about 80% are used in the mining industry concentrator. Due to the poor working conditions of ore primary selection, the service life of the slurry pump is generally low in this section. Of course, different ores have different abrasive properties. If the relative abrasiveness is reduced in the section such as concentrate transportation, the overall service life of the pump will be longer. Therefore, the service life of the overcurrent components (wear and corrosion resistant parts) depends on many different factors, and the diversity and complexity of the working conditions lead to differences in the service life of the same quality materials.

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Construction Design

Shaft Seal Module Design

Performance table

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
