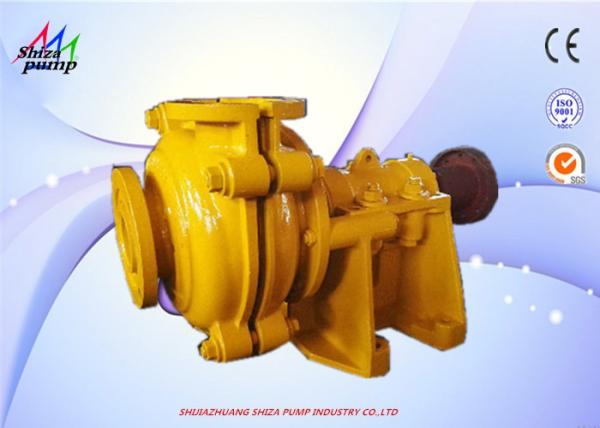

    Low Pressure Heavy Duty Slurry Pump , Horizontal Single Stage Centrifugal Pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 4/3E-HH
    Certification : ISO
    Price : based on quantity
    Supply Ability : 200sets monthly
    Delivery Time : 15days
    • Product Details
    • Company Profile

    Low Pressure Heavy Duty Slurry Pump , Horizontal Single Stage Centrifugal Pump

    High Volume Low Pressure solid slurry pump , high qualitymining slurry pump,single stage solid centrifugal slurry pump

    Simple introduction

    centrifugal slurry pump is used for delivering slurry with strong abrasion and high concentration for metallurgy, mines, coal and power plant, etc.

    The kind of pump has innovation in the design of structure. Wet parts are made of abrasion resistant high-chromium alloy or rubber material, with characteristics of high efficiency, energy saving, wear resistant, reliable running etc.


    Working ranging :

    a) Diameter: DN25-DN400mm

    b) Flow:12-50400m3/hr

    c) Head:5-90 m

    d) Rotate speed:300-3800r/min

    e) Motor power:2.2-55 KW

    f) Working temperature: ≤80°C


    Pump performance table

    MODELALLOWABLE MATING
    MAX.POWER
    (KW)
    MATERIALCLEAN WATER PERFORANCEIMPELLER
    LINERIMPELLERQ CapacityH HeadSpeedMax. Eff.NPSHVANES NO.IMPELLER DIA
    m3/hL/s(m)n(r/min)(%)(m)(mm)
    1.5/B-15MM12.6-28.83.5-86-681200-3800402--45152
    RURU10.8-25.23--77-521400-3400303
    1/1.5B-15MM16.2-34.24.5-9.525-921400-2200202-5.55330
    2/1.5B-15MM32.4-729--206-581200-3200453.5-85184
    RURU25.2-547--155.5--411000-2600502.5-55178
    3/2C-30MM39.6-86.411--2412-641300-2700554--65214
    RURU36-75.610--2113-461300-2300602--45213
    3/2D-HH60MM68.4-136.819-3825-87850-1400473-7.55457
    4/3C-30MM86.4-19824-559-521000-2200714--65245
    RURU79.2-18022-505-34.5800-1800593--5
    4/3E-HH120MM126-25235-7012-97600-1400502--55508
    6/D-60MM162-36040-10012-56800-1550655--85365
    RURU144-32440-9012-45800-1350653--55365
    6/4S-HH560MM324-72090-20030-118600-1000643-85711
    6S-HH560MM468-1008130-28020-94500-1000654-125711
    8/6E-300MM360-828100-23010-61500-1140722-95510
    RURU324-72090-2007-49400-1000655-105510
    10/8E-M120MM666-1440185-40014-60600-1100734-105549
    10/8ST-560MM612-1368170-38011-61400-850714-105686
    RURU540-1118150-33012-50400-750754-12
    12/10ST-560MM936-1980260-5507-68300-8008265762
    RURU720-1620200-4507-45300-650802.5-7.5
    14/12ST-560MM1260-2772350-77013-63300-600773-85965
    RURU1152-2520320-70013-44300-500793-10
    16/14TU-1200MM1368-3060380-85011-63250-550794-1051067
    20/18TU-1200MM2520-5400700-150013-57200-400855-1051370

    Application of slurry pump

    Slurry pump can be widely used in mines, electric power, metallurgy, coal, environmental protection and other industries transport slurry containing abrasive solid particles.Such as metallurgical mill pulp conveying, hydraulic ash thermal power plants, coal washery coal slurry and heavy media delivery, dredging river, river dredging, etc.In the chemical industry, also can carry some corrosive slurry containing crystallization.
