Overview

4 / 3 C - High Chrome Alloy Wear-resistant Heavy Duty Centrifugal Slurry Pump is a cantilever, horizontal centrifugal slurry pump. It is suitable for conveying strong abrasion and high concentration slurry in metallurgy, mining, coal, electric power, building materials and other industrial sectors.

High Chrome Alloy Wear-resistant Heavy Duty Centrifugal Slurry Pump can also be called a heavy duty slurry pump. Because the pump has a thick bearing and heavy-duty bracket, it is suitable for conveying strong abrasion, high concentration slurry or low concentration high lift slurry. It can be connected in multiple stages within the maximum allowable working pressure range of the pump. use.

4 /3 C - Specifications

Typical Applications:

-Ash Handling

-Cyclone Feeds

-Pulp and Paper

-Abrasive Slurries

-Coal Preparation

-Mineral Processing

-Aggregate Processing

Feature

1. The frame plates for slurry pump have replaceable wear-resistant metal liners or rubber liners.
2. The impellers are made of wear-resistant metal or rubber. The frame plate liner and impeller for slurry pump are adoptable of hard metal only.
3. Bearing assembly use cylindrical structure,adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.
4. The shaft seal could use the packing seal, expeller seal and mechanical seal.
5. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications

Type meaning

Performance table of (R)/HH centrifugal slurry pump

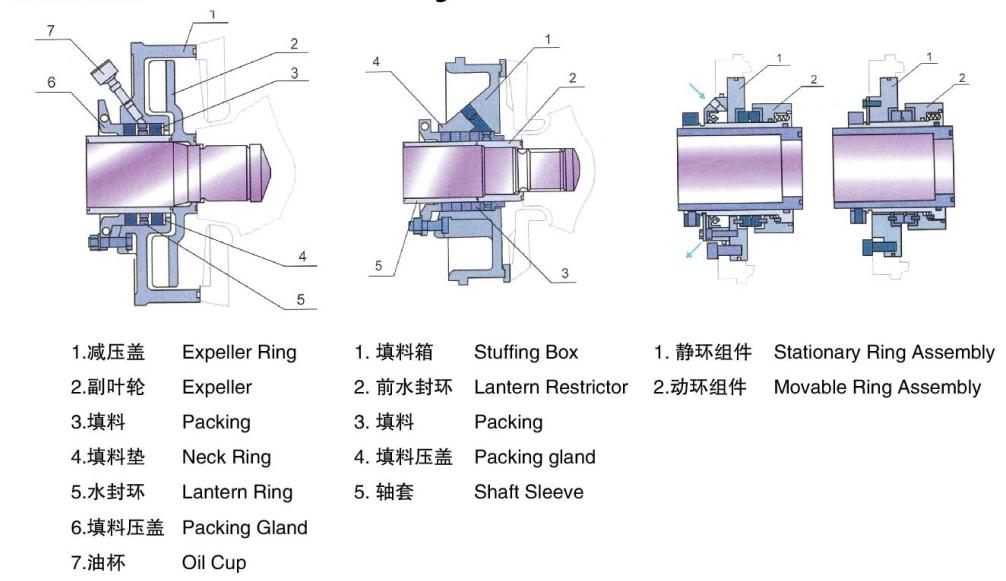

(R)/HH/M(R) Series Slurry Pump Construction Design

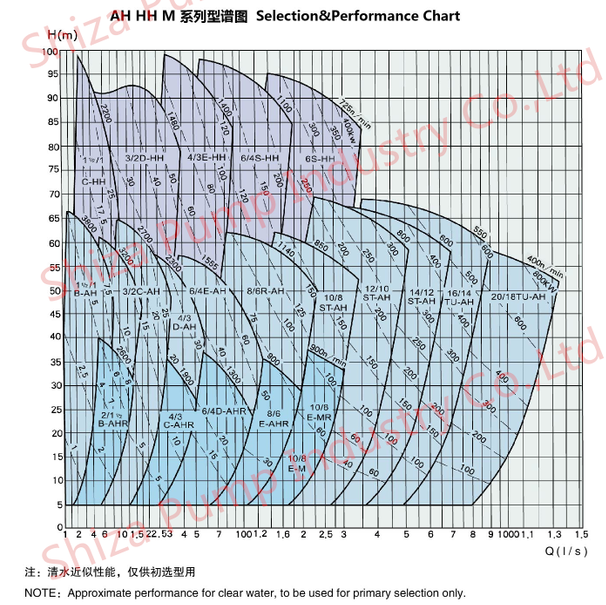

Selection And Performance Chart

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
