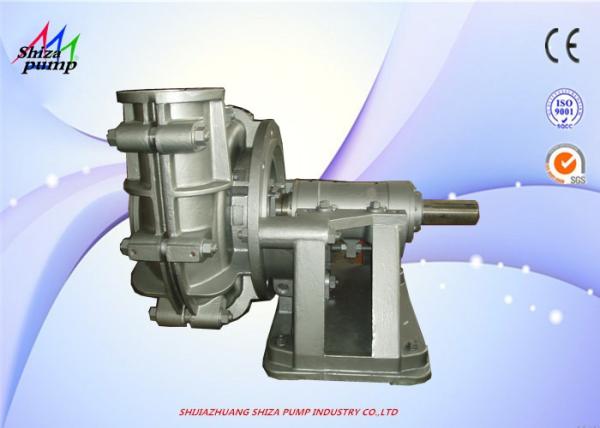

240 Ft Head Single Stage Centrifugal Pump With 22,000 Gpm Capacity Industrial

General characteristics

Size range (outlet):----- 1'' to 18'' (25 mm to 450 mm)

Features

Single stage, single suction, overhang shaft, centrifugal, double-casing horizontal pump, Wet ends are made of abrasive resistant hard metal or rubber.

Base- High strengthened base is connected with Frame Plate by bolts; The Adjusting Bolt under the Bearing Assembly realize easy adjustment to impeller clearance.

Bearing Assembly:

-High rigidity shaft to handle heavy duty work condition;

-Cartridge bearing assembly jointed with base by bolts;

-Grease Lube bearings fitted in sealed bearing housing, the two labyrinth on both ends prevent the grease from contamination.

Shaft Sleeve - Clearance fit between solid solution treated stainless steel shaft sleeve and shaft as well as the O-rings on both ends prevent the shaft from abrasion and erosion.

Casing - Made of Gray Iron or Ductile Iron, Ribs help casing to stand high pressure.

Impeller - Pump out vanes on both shrouds reduces recirculation and seal pressure.

Wet Ends - Impellers, liners, volutes made of High-Chrome alloy or rubber, both materials are interchangeable.

Application of slurry pump

Slurry pump can be widely used in mines, electric power, metallurgy, coal, environmental protection and other industries transport slurry containing abrasive solid particles.Such as metallurgical mill pulp conveying, hydraulic ash thermal power plants, coal washery coal slurry and heavy media delivery, dredging river, river dredging, etc.In the chemical industry, also can carry some corrosive slurry containing crystallization.

Performance table

Shijiazhuang ShizaPump Industry Co.,Ltd. founded in 2008, is a professional industrial pump manufacturer engaged in researching slurry pump, wear and corrosion resistant materials and OEM processing.

Shizapump group covers more than 40000 square meters, the registered capital is 18 million yuan. Over the years with strong strength and people-oriented concept, we absorb a large number of high-quality management and technical talents. Existing staff is more than 220 people, of whom 30% are technicians.

Our production area covers an area of 24000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.The production area is divided into five districts one area and two centers, namely mould casting, heat treatment, fine machining, forge welding and assembly coating of five production areas; finished spare parts; quality analysis and water experiment. The main material of products: A05, A49, A33, A51 and other high chromium white cast iron.

Shijiazhuang ShizaPump Industry Co.,Ltd. fully implements the ISO9001 management system and observes the process of inspection. Quality inspection records are available in all production processes. Professional instruments include spectrometer, metallographic analyzer, flaw detector, mechanical test machine (strain, impact, hardness), magnetic flowmeter, pressure gauge, ammeter, vibration meter, noise meter, hydraulic experimental curve of professional software. Perfect detection guarantees the quality of equipment to ensure that each pumps and parts are fully in line with the requirements.

Shijiazhuang ShizaPump Industry Co.,Ltd. has spread all domestic market in China over 30 provinces and municipality. Also has been successfully used in 20 countries in global .First line staff have professional experience to provide service for customers.
