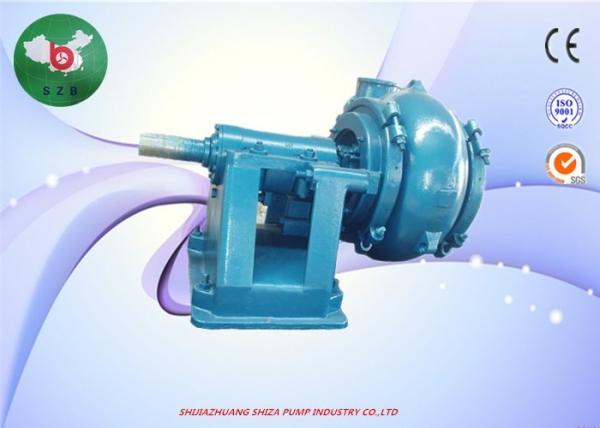

    Gravel Dredge Pump 10 / 8S - GH Sludge For Sand Washing Plants Hard Rock

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : GH
    Certification : ISO CE
    Price : based on quantity
    Supply Ability : 300sets monthly
    • Product Details
    • Company Profile

    Gravel Dredge Pump 10 / 8S - GH Sludge For Sand Washing Plants Hard Rock

    Heavy Duty Sand Gravel Dredging Pump, 10 / 8S - GH Sludge Hard Rock Slurry Pumps for Sand


    Washing Plants


    Pump features


    1. Construction of G pump is single casing connected by means of clamp bands and wide weet

    passage.

    2. The we parts are made of Ni hard and high chrome abrasion resistance alloys. The discharge

    direction of pump can be oriented in any dirtction of 360 degree.This type of pump possesses the

    advantage of easy installation and operation,good performance of NPSH and resistance.
    3. Sealing forms:Packing gland,Expeller seal,mechanical seal.
    4. Driving type:V-belt,hydraulic coupling drive,fluid coupling drive,frequency coversion drives,thyrister

    speed regulation etc.

    Type meaning for dredge pump


    10 / 8 S-G(H)

    10----------------pump inlet size (inch )

    8-----------------pump outlet size (inch)

    S-----------------Support Type

    G----------------Pump Model

    H----------------High head gravel pump


    G(H) gravel pump material list for parts:


    Part NameMaterialSpecificationHRCApplicationOEM Code
    Liners & impellersMetalAB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    AB15: 14%-18% chrome white iron≥59Used for higher wear conditionA07
    AB29: 27%-29% chrome white iron43Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4A49
    AB33: 33%-37% chrome white ironIt can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vil, phosphate etc.A33
    Expeller & expeller ringMetalB27: 23%-30% chrome white iron≥56Used for higher wear condition with pH between 5 and 12A05
    Grey ironG01
    ShaftMetalCarbon steelE05
    Shaft sleeve, lantern ring/resctrictor, neck ring, gland boltStainless steel4Cr13C21
    304 SSC22
    316 SSC23
    Joint rings & sealsRubberButylS21
    EPDM rubberS01
    NitrileS10
    HypalonS31
    NeopreneS44/S42
    VitonS50

    Performance table:


    Pump ModelAllowableClear Water Performance
    Max. PowerCapacity QHeadSpeedMax.Eff.Impeller. Dia. (mm)
    (kw)m3/hH (m)n(r/min)(%)
    6/4D-G6036-2505-52600-140058378
    8/6E-G120126-5766-45800-140060378
    10/8S-G560216-9368-52500-100065533
    10/8F-G260216-9368-52500-100065533
    10/8S-GH560180-144024-80500-95072711
    12/10F-G260360-144010-60400-85065667
    12/10G-G600360-144010-60400-85065667
    12/10G-GH600288-280816-80350-70073950
    14/12G-G600576-30248-70300-70068864
    16/14G-G600720-360018-44300-500701016
    16/14TU-G1200324-360026-70300-500721270
    18/16G-G600720-432012-48250-500721067
    18/16TU-G1200720-432012-48250-500721067
