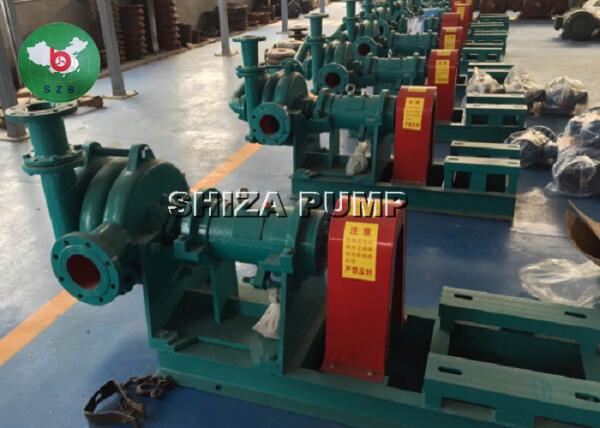

    Centrifugal Light Duty Filter Press Feed Pump , High Efficiency Centrifugal Sludge Pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 65ZJW
    Certification : ISO9001 / CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 Sets per Month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    Centrifugal Light Duty Filter Press Feed Pump , High Efficiency Centrifugal Sludge Pump

    Centrifugal Light Duty Filter Press Feed Pump , High Efficiency Centrifugal Sludge Pump​


    Filter press pump normally works at 1480rpm. For low press requirements, we can cut impeller diameter or change pump speed to meet the applications. If belt-pulley coupling type required, installation drawing will be made separately.

    Flood suction is suggested for its press suction and low suction head.

    The suction/discharge diameter of pipe should be the same or bigger than the pump.

    For high density slurries, the inlet pipe should not be very long to avoid effecting suction.


    Pump spare parts


    1. Two-phase volute12. Shaft sleeve
    2. Two-phase impeller13. Cover plate
    3. One-phase volute14. Disassembly ning
    4. Back plate15. Water retaining pllate
    5. Feeding room16. Bearing
    6. Locating bush17. Shaft
    7. Expeller18. Bearing spacer sleeve
    8. Expeller cover plate19. Bearing cover
    9. Decompression body20. Frame
    10. One-phase impeller21. Bent pipe
    11. Tie-bar

    performance table


    ModelCapacityHeadSpeedMotor
    m3/hmr/minmodelpower
    65ZJW27.5761480Y225S-430
    41.472.2
    55.266.1
    6956
    8043.537
    80ZJW40761480Y225S-437
    6072.2
    8066.1
    10056
    11543.5Y225M-445
    100ZJW5673.31480Y225M-445
    8569
    11362.5
    15051.2
    16944Y250M-455
    125ZJW7073.51480Y250M-455
    10571.6
    14068.6
    18661.9
    24548.5Y280S-475
    125ZJW79.7801480Y280S-475
    11978
    15974.8
    21167.5
    27952.9Y280M-490
    125ZJW5891.81480Y280S-475
    8789.1
    11685.7
    15477.3
    20360.6Y280M-490

    Using occassion


    Minerals Flotation Processing
    Electric Factory Coal Preparation
    Coal Washing
    Chemical Medium Processing
    Effluent Handling
    Sand And Gravel Handling


    Structural Drawing
